Extended navigation

Article last updated at August 11, 2026

The platform supports flexible configuration of the top and bottom navigation (the "header" and "footer") on a page.

For this, the page-constructor package is used. In StoryBook, you can find examples of navigation configuration.

The logo in the top menu is set in toc.yaml using the navigation.logo parameter:

navigation:
  logo:
    url: 'https://diplodoc.com'
    urlTitle : "Текст всплывающей подсказки"
    dark:
      icon: 'https://storage.yandexcloud.net/diplodoc-www-assets/logo/ddos-logo-dark.svg'
      text: 'Diplodoc'
    light:
      icon: 'https://storage.yandexcloud.net/diplodoc-www-assets/navigation/diplodoc-logo.svg'
      text: 'Diplodoc'

The top menu configuration is added to toc.yaml as follows:

navigation:
  header:
    leftItems:
      - text: 'Relative Link'
        type: 'link'
        url: './ru/settings'
      - text: 'Absolute Link'
        type: 'link'
        url: 'https://diplodoc.com/docs/ru/project/'
    rightItems:
      - text: 'Other Link'
        type: 'link'
        url: 'ru/contribution'
      - type: controls

For list items of leftItems and rightItems of the first level, you can use the when display conditions and variable substitutions, similar to table of contents sections.

Supported elements

The item type is specified in the type property.
The following are available at the first level:

  • dropdown — a dropdown list; the items property can contain items of the following types:

    • column — a group of items displayed in a single column;

    • section — a group of links combined under a heading specified via the title field;

    • link — a link;

      Examples of dropdown list configuration

      A simple list:


      - type: dropdown
  text: 'Dropdown'
  items:
    - type: link
      text: 'Link 1'
      url: 'https://diplodoc.com'
    - type: link
      text: 'Link 2'
      url: 'https://diplodoc.com/docs/'

      Several groups of links in one column:


      - type: dropdown
  text: 'Dropdown'
  items:
    - type: section
      title: 'Section 1'
      items:
        - type: link
          text: Link 1
          url: 'https://diplodoc.com'
        - type: link
          text: Link 2
          url: 'https://diplodoc.com/docs/'
    - type: section
      title: 'Section 2'
      items:
        - type: link
          text: 'Link 3'
          url: 'https://diplodoc.com/docs/'

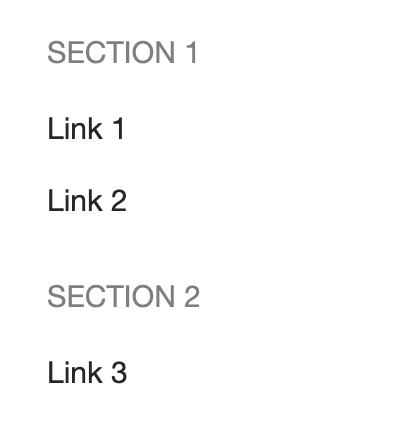

      Example with groups of links in one column

      Groups of links in multiple columns:


      - type: dropdown
  text: 'Dropdown'
  items:
    - type: column
      items:
      - type: section
        title: 'Section 1'
        items:
          - type: link
            text: 'Link 1'
            url: 'https://diplodoc.com'
          - type: link
            text: 'Link 2'
            url: 'https://diplodoc.com/docs/'
      - type: section
        title: 'Section 2'
        items:
          - type: link
            text: 'Link 3'
            url: 'https://diplodoc.com/docs/'
    - type: column
      items:
      - type: section
        title: 'Section 3'
        items:
          - type: link
            text: 'Link 4'
            url: 'https://diplodoc.com/docs/ru/dev/'
          - type: link
            text: 'Link 5'
            url: 'https://diplodoc.com/docs/ru/quickstart/'
          - type: link
            text: 'Link 6'
            url: 'https://diplodoc.com/docs/ru/project/'

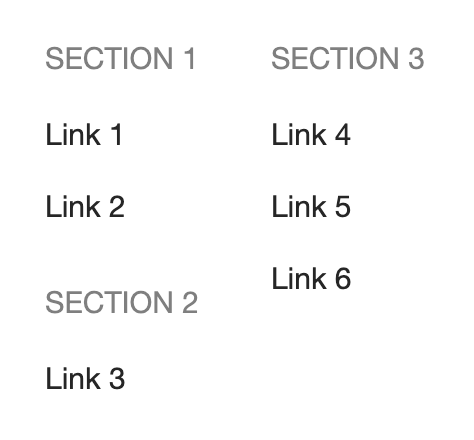

      Example with multiple columns

  • label — static text; the theme property defines the block style:

    Example with static text block styles

    Example of configuration with text blocks
    - type: label
  theme: normal
  text: normal

- type: label
  theme: info
  text: info

- type: label
  theme: danger
  text: danger

- type: label
  theme: warning
  text: warning

- type: label
  theme: success
  text: success

- type: label
  theme: utility
  text: utility

- type: label
  theme: unknown
  text: unknown

- type: label
  theme: clear
  text: clear

  • search — a placement point for the search field in the navigation.
    If not specified manually, it is automatically added as the last item in rightItems.

  • controls — a placement point for settings in the navigation.
    If not specified manually, it is automatically added as the last item in rightItems.

At the first level, in dropdown lists, groups of elements, and links, the following element is available:

  • link — a link; the url property contains the link text, target: _blank enables opening the link in a new tab; relative links are always calculated from the project root, regardless of the level at which toc.yaml is located.

The bottom menu configuration is added to toc.yaml as follows:

navigation:
  footer:
    copyright: 'Diplodoc'
    withDivider: true
    menuItems:
      - text: "GitHub"
        url: "https://github.com/diplodoc-platform"
      - text: "Для разработчиков"
        url: "https://diplodoc.com/docs/ru/dev/"
        target: '_self' # по умолчанию _blank

Main parameters:

  • copyright (string) — the copyright text to display,
  • menuItems — a list of links, where each link is described by the following fields:
    • text — the title,
    • url — the link,
    • target (optional parameter) — to open the link in the same browser tab, you can specify the value _self in this field.

The full list of supported parameters can be found on the Footer component page on the Gravity UI website.

See also: Ajv schema of toc.yaml table of contents files
